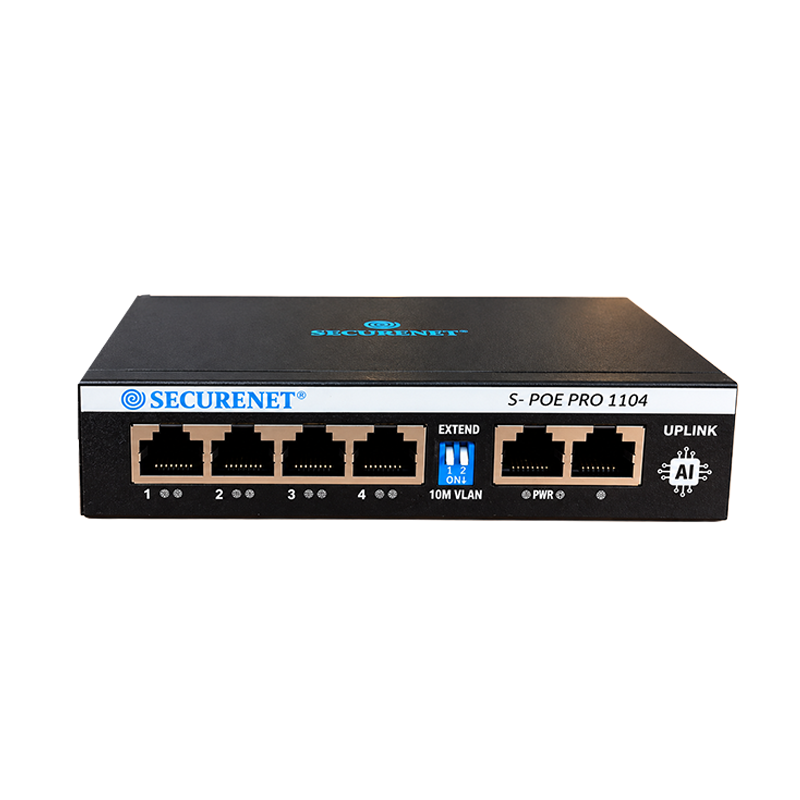

S- POE PRO 1104

1-4 Port: 180m Distance PoE Switch

Main Feature:

4×10/100Mbps PoE ports, 2×10/100Mbps uplink port
Supports IEEE 802.3af/at
Supports network storm restraint, VLAN & Watchdog function
Max transmission distance up to 180m with PoE power
Built-in power supply
Maximum power of single PoE port: 30W
Maximum PoE power: 96W
Adopts store-and-forward architecture
Fan less, natural cooling, small, compact and quiet design, suitable for desktop or wall
Supports lightning protection 6000V

Category: POE

Product Features & Specifications

Feature	Specification
Product type	AI 100 Mbps PoE Ethernet switch
Input voltage	AC 100V-240V
Port Description	4×10/100M PoE Ethernet ports + 2×10/100M Uplink Ethernet ports
Total power consumption	Full load <96W
MTBF (Mean Time Between Failures)	100,000 hours
Working/Storage Temperature	-30°C ~ +70°C
Relative humidity	5% to 95% (non-condensing)
Power Indicator	PWR (Power Supply Indicator), red light (PoE status indicator), blue light (link/data indicator)
Switching mode	Store-and-Forward
Packet forwarding rate	1.1904Mpps
Network Standards	IEEE802.3, IEEE802.3u, IEEE802.3x
Exchange capacity	1.6Gbps
MAC address Table	2k
Flow control	Support
Net topology	Supports star topology, bus topology, tree topology, and more
Levels of protection	IP30
Weight	0.35 kg per unit
Packing measurement	162×162×40mm
Casing	High-quality metal with superior heat dissipation
Power Budget	96W
Product size	130×110×35 mm (excluding protrusions)
